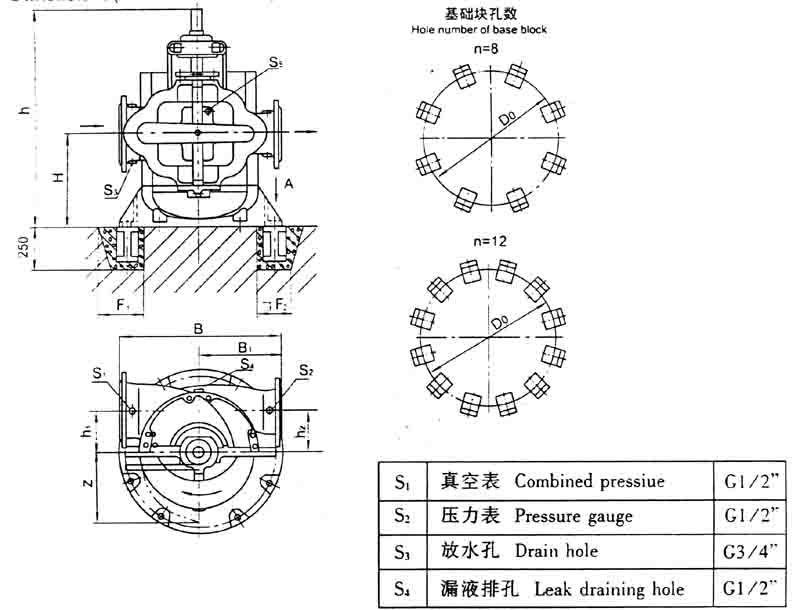

1、帶基礎(chǔ)塊安裝尺寸
Installation
Dimensions(With Base Block)
|
泵型號 Type |
B |
B1 |
H |
h |
h1 |
h2 |
F1 |
□F2 |
Do |
n |
拆卸尺寸 Disassembly dimensions |
||
|
SBM350-620 |
1410 |
740 |
770 |
1490 |
460 |
403 |
200 |
150 |
1060 |
8 |
880 |
||
|
SBM400-540 |
1450 |
750 |
780 |
1590 |
400 |
460 |
200 |
150 |
1130 |
8 |
950 |
||
|
SBM400-620 |
1500 |
800 |
895 |
241O |
490 |
490 |
200 |
150 |
1130 |
8 |
950 |
||
|
SBM500-530 |
1650 |
800 |
805 |
1830 |
475 |
475 |
200 |
150 |
1130 |
8 |
950 |
||
|
SBM500-640 |
1650 |
800 |
895 |
201O |
495 |
495 |
200 |
150 |
1130 |
8 |
950 |
||
|
SBM500-71O |
1900 |
850 |
865 |
1950 |
550 |
620 |
200 |
150 |
1130 |
8 |
1000 |
||
|
SBM500-790 |
1900 |
900 |
820 |
1995 |
600 |
600 |
200 |
150 |
1330 |
8 |
1150 |
||
|
SBM500-900 |
2000 |
950 |
830 |
2040 |
650 |
650 |
200 |
150 |
1330 |
8 |
1250 |
||
|
SBM600-560 |
2000 |
900 |
930 |
2010 |
610 |
610 |
200 |
150 |
1330 |
8 |
1100 |
||
|
SBM600-620 |
2000 |
1000 |
845 |
1905 |
545 |
545 |
200 |
150 |
1130 |
8 |
1050 |
||
|
SBM600-71O |
2000 |
1000 |
890 |
2050 |
545 |
545 |
200 |
150 |
1130 |
8 |
1100 |
||
|
SBM600-870 |
2300 |
1200 |
1000 |
2275 |
580 |
580 |
200 |
150 |
151O |
8 |
1300 |
||
|
SBM700-570 |
2300 |
1200 |
1055 |
2355 |
580 |
580 |
200 |
150 |
1330 |
8 |
1100 |
||
|
SBM700-710 |
2350 |
1150 |
1160 |
1120 |
620 |
620 |
200 |
150 |
151O |
8 |
1200 |
||
|
SBM700-830 |
2500 |
1250 |
1220 |
2660 |
660 |
650 |
270 |
100 |
1900 |
12 |
1300 |
||
|
SBM800-770 |
2350 |
950 |
1280 |
2690 |
770 |
770 |
270 |
200 |
1900 |
12 |
1450 |
||
|
SBM800-880 |
2525 |
1125 |
1145 |
2745 |
770 |
770 |
270 |
200 |
1900 |
12 |
1450 |
||
|
SBM800-980 |
2700 |
1300 |
1305 |
2885 |
760 |
760 |
270 |
200 |
1900 |
12 |
1500 |
||
|
SBM900-1050 |
2900 |
1300 |
1400 |
3600 |
975 |
975 |
300 |
100 |
2230 |
12 |
1750 |
||
