2)Diesel
Engine Characteristic
|
Type |
KM178F |
KM186F |
KM376QC |
|
Shape |
Single Cyl.,Vertical, 4 strokes,Air cool, uniflow scavenging |
Single Cyl., Vertical,4 strokes, air cool,uniflow
scavenging |
3 Cyl.,4 strokes, in-line,air cool, swirl-chamber
engine |
|
Piston displacement
L |
0.296 |
O．406 |
0.993 |
|
Cyl．Dia×stroke mm |
78×62 |
86×70
|
76×73 |
|
Rated power r/min |
3600 |
3600 |
3500 |
|
Max Power： kW |
4.41 |
6． 62 |
20． 1 |
|
Continuous power： kW |
4 |
6 |
16 |
|
Capacity of FO tank：L |
5． 5 |
5． 5 |
24 |
|
Capacity of LO：L |
1． 1 |
1． 65 |
3．2 |
|
Start method |
Draw or Draw
combined with power operated
|
||
|
Net weight |
33 |
48 |
110 |
The
tvoe: CWY pump unit make up of diesel engine, water pump, vane pump engine frame
and so on.

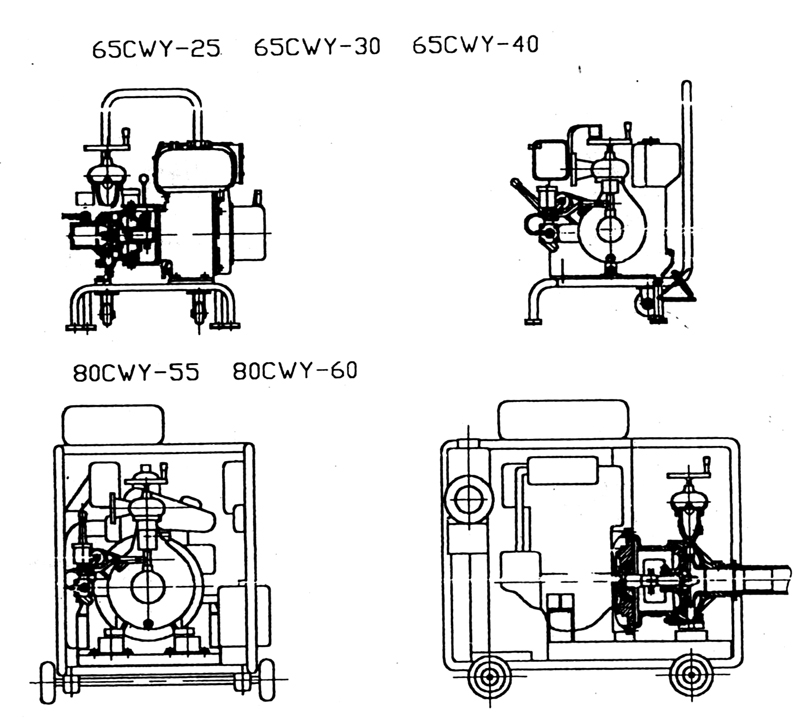

As
diagram;
|
Type |
Length |
Width |
Height |
|
65CWY-25 65CWY-30 |
620 |
530 |
840 |
|
65CWY-40 |
665 |
570 |
850 |
|
80CWY-55 80CWY-60 |
1235 |
700 |
1000 |
