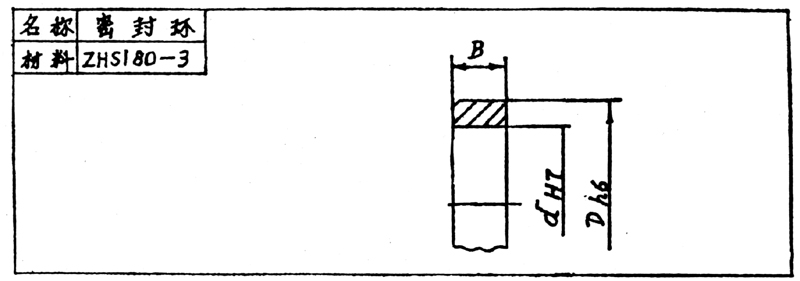

易損零件主要尺寸一覽表
|
零件名稱 |
密 封 環 |
軸承 |
|
||
|
尺寸 泵的型號 |
Dh 6 |
dH7 |
B |
型號 |
備 注 |
|
1½BA-6 |
65 |
62 |
15 |
204 |
|
|
2 BA-8 |
80 |
65 |
15 |
305 |
|
|
2 BA-9 |
80 |
65 |
15 |
305 |
|
|
3 BA-6
|
95 |
80 |
15 |
307 |
|
|
8 BA-9 |
95 |
80 |
15 |
306 |
|
|
3 BA-13 |
95 |
80 |
15 |
305 |
|
|
4 BA-6 |
130 |
115 |
16 |
309 |
|
|
4 BA-8 |
115 |
100 |
16 |
307 |
|
|
4 BA-12 |
115 |
100 |
16 |
307 |
|
|
4 BA-18 |
115 |
100 |
16 |
306 |
|
|
4 BA-25 |
115 |
1OO |
16 |
305 |
|
|
6 BA-8 |
165 |
150 |
18 |
307 |
|
|
6 BA-12 |
165 |
150 |
18 |
307 |
|
|
6 BA-18 |
165 |
150 |
18 |
307 |
|
|
8 BA-12 |
195 |
180 |
20 |
307 |
|
|
8 BA-18 |
195 |
180 |
20 |
307 |
|
|
8 BA-25 |
195 |
180 |
20 |
307 |
|
注：民用泵密封環材料采用HT20-40
