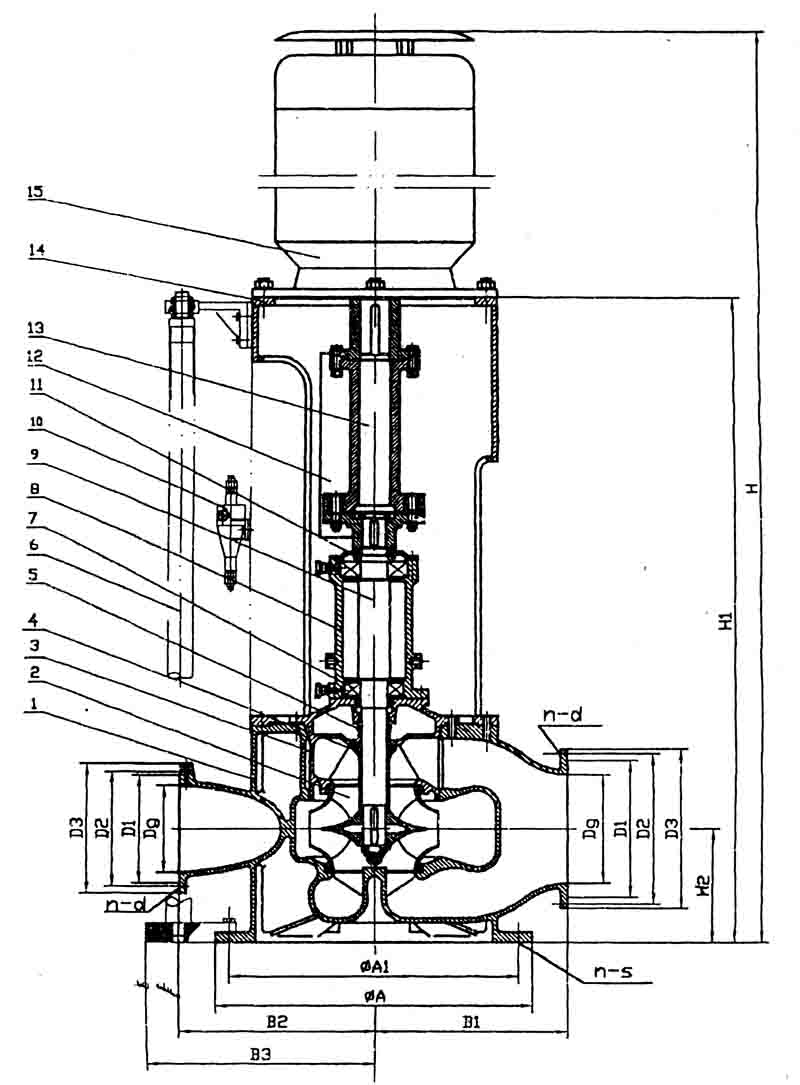

圖三picture 3

1．泵體2．葉輪 3．泵蓋  4．軸套5．機械密封6．支撐柱7．軸承8．軸承體

9．軸10．旋液分離器11．軸承壓蓋．12．護罩13．聯軸器總成14．電機架15．電機

1．Pump body 2．Vane wheel 3．Pump cover 4．Shaft sleeve 5．Mechanical sealing 6．

Support 7．Bearing 8．Bearing body 9．Shaft 10．Rotation liquid separator 11．Bearing

gland 12．Guard shield 13．Shaft coupling 14．Motor bracket 15．Motor
