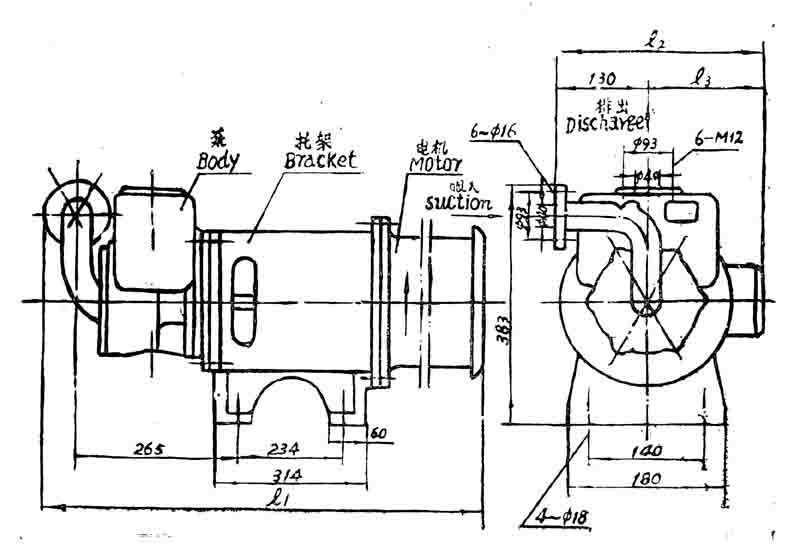

Drawing of overall dimepsiqns
|
泵型號(hào) |
配帶電機(jī) |
符號(hào)尺寸 symbol Dimension |
||
|
Model of pump |
Model of motor |
l1 |
l2 |
l3 |
|
|
Z2C-32(T8) |
1086 |
435 |
305 |
|
1.5CWX-4A |
Y112M-2H(B5) |
952 |
325 |
195 |
|
|
Z2C-22(T6) |
1016 |
390 |
260 |
|
1.5CWX-2A |
Y90L-2H(B5) |
897 |
305 |
175 |
