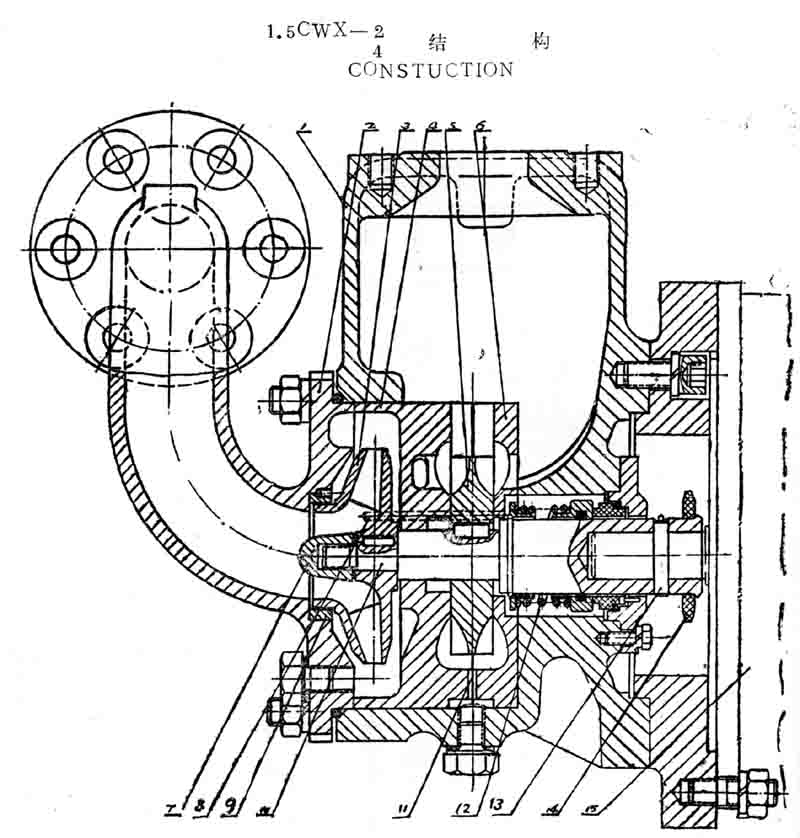

1、泵  體                               2、泵  蓋

    Pump body                            Pump cover

 3、離心工作輪                           4、外隔板

    cetatrifugal working wheel           Outer diaphragm plate

 5、旋渦輪                               6、內隔板

    Swirl wheel                          Inner diaphragm plate

 7、葉輪螺母                             8、銷

    Wheel nut                            Pin

 9、密封環                               10、泵  軸

  Sealing ring                            Pump shaft

11、墊  片                               12、機械密封

    Facking sheet                        Mechanical sealfng Part

13、橫    銷                             14、擋    圈

    Lateral pin                          Shield ring

15、電動機  Motor
