| 一、概 述
SH型泵系單級、雙級、泵殼中開的臥式離心泵，供吸送清水或物理化學性質類似于水的其它液體，被吸收送液體最高溫度80℃。
SH型泵的流量為110～12500米³/時，揚程為10.6～140米，適用于工廠、礦山、城市給水、電站、水利工程、農田灌溉及排澇等。

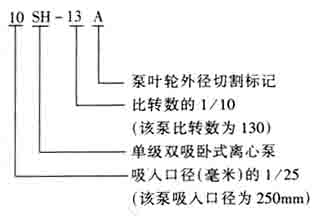

型號意義
二、結構說明
從聯軸器端看，SH型泵均為逆時針?lè)较蛐D(zhuǎn)，用戶如需要順時針?lè)较蛐D(zhuǎn)的泵，必須在訂貨時特殊提出。
SH型泵的主要零部件有：泵體、泵蓋、葉輪、軸、雙吸密封環、軸套、軸承部件與聯軸器部件等。
泵殼制成水平中開，泵的吸人口與吐出口均鑄在下半部泵體上，泵蓋以螺尾錐銷定位，與泵體配合，檢查泵殼內部時，只要拆開泵蓋，毋須拆卸進出水管路。泵體的進出水法蘭上，有安裝真空表與壓力表的管螺紋孔。在進出水法蘭的底部有放水用的螺塞。
葉輪經過靜平衡校驗，由鍵、軸套與兩側軸套螺母固定在泵軸上，其軸向位置用軸
|
I. Gereral
Series SH pumps are single
stage, double suction with horizontally split casings. They are suitable for pumping
clean water or liquid similar to it in physical and chemical properties at a
temperature not exceeded 80℃.
Series SH pumps are
available for capacities of 110-12500m³/h and heads of 10. 6-140m. They are adoptable
in factories, mines, water works, power stations, hydraulic engineerings,
irrigation or drainage services in agriculture, etc.

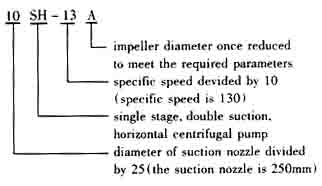

The meaning of the model:
Ⅱ.
Construction
Viewed form the driving
end, all the SH pumps are rotating
in counter- clockwise direction. Pumps of clockwise rotation can only be supplied
upon special request.
The main components of SH
pump are listed as follows: lower half casing, upper half casing, impeller, shaft,
wearing rings, shaft sleeves, bearing housings and couplings.
The volute casing is split
on the horizontal center line ,with the/suction and discharge nozzles cast integral
with the lower half. The upper casing is accurately located on the lower half
by the use of dower pins. It can be removes to inspect the interior of the pump
without disturbing the pipe connections or pump alignment. The suction and
discharge flanges contain tapped holes for vacuum and pressure gauge. At the bottom
of the flanges, there are tapped plugs for water drainage.
The impeller has been
balanced statically. It is
|
