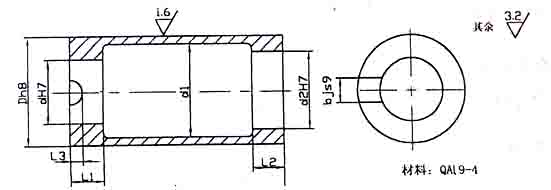

軸套外形尺寸表
|
序號(hào) |
泵型號(hào) |
L |
L1 |
L2 |
L3 |
DH8 |
DH7 |
d1 |
D2H7 |
Bjs9 |
|
1 |
32CWL-4 |
65 |
8 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
2 |
32CWL-3 |
65 |
10 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
3 |
40CWL-5 |
65 |
10 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
4 |
40CWL-4 |
65 |
10 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
5 |
40CWL-3 |
95 |
10 |
10 |
6 |
40 |
20 |
31 |
30 |
6 |
|
6 |
50CWL-6 |
65 |
10 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
7 |
50CWL-4.5 |
88 |
12 |
10 |
7 |
35 |
20 |
27 |
25 |
6 |
|
8 |
50CWL-4 |
95 |
10 |
10 |
6 |
40 |
20 |
31 |
30 |
6 |
|
9 |
50CWL-8 |
65 |
10 |
10 |
6 |
35 |
20 |
27 |
25 |
6 |
|
10 |
50CWL-7 |
88 |
12 |
10 |
7 |
35 |
20 |
27 |
25 |
6 |
|
11 |
50CWL-5 |
75 |
10 |
10 |
6 |
45 |
28 |
37 |
35 |
8 |
|
12 |
50CWL-3.5 |
100 |
10 |
10 |
7 |
40 |
25 |
32 |
30 |
8 |
|
13 |
65CWL-11 |
77 |
9 |
10 |
4 |
35 |
20 |
27 |
25 |
6 |
|
14 |
65CWL-8 |
88 |
12 |
10 |
7 |
35 |
20 |
27 |
25 |
6 |
|
15 |
65CWL-6 |
75 |
10 |
10 |
6 |
45 |
28 |
37 |
35 |
8 |
|
16 |
80CWL-14 |
100 |
10 |
10 |
7 |
40 |
25 |
32 |
30 |
8 |
|
17 |
80CWL-11 |
100 |
10 |
1O |
7 |
40 |
25 |
32 |
30 |
8 |
|
18 |
80CWL-8 |
100 |
10 |
1O |
6 |
50 |
35 |
41 |
40 |
1O |
|
19 |
80CWL-6 |
90 |
1O |
20 |
6 |
50 |
32 |
41 |
40 |
1O |
|
20 |
80CWL-5.5 |
100 |
1O |
10 |
6 |
50 |
35 |
41 |
40 |
1O |
|
21 |
100CWL-18 |
100 |
1O |
1O |
7 |
40 |
25 |
32 |
30 |
8 |
|
22 |
100CWL-14 |
90 |
8 |
1O |
5 |
45 |
28 |
36 |
35 |
8 |
|
23 |
100CWL-11 |
100 |
1O |
1O |
6 |
50 |
35 |
41 |
40 |
1O |
|
24 |
100CWL-8 |
100 |
1O |
10 |
6 |
50 |
35 |
41 |
40 |
10 |
|
25 |
100CWL-6 |
98 |
1O |
1O |
7 |
55 |
35 |
45 |
40 |
1O |
|
26 |
150CWL-18 |
100 |
1O |
1O |
6 |
50 |
35 |
41 |
40 |
1O |
|
27 |
200CWL-12 |
95 |
1O |
20 |
6 |
60 |
45 |
51 |
50 |
14 |
|
28 |
200CWL-18 |
95 |
1O |
20 |
6 |
60 |
45 |
51 |
50 |
14 |
