型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
600WQ3500-12-185 |
φ600 |
3500 |
12 |
740 |
185 |
85 |
2580 |
|
600WQ5500-10-250 |
φ600 |
5500 |
10 |
740 |
250 |
83 |
2580 |
|
600WQ3750-17-250 |
φ600 |
3750 |
17 |
740 |
250 |
85 |
2580 |
|
600WQ6000-10-280 |
φ600 |
6000 |
10 |
740 |
280 |
84 |
2600 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

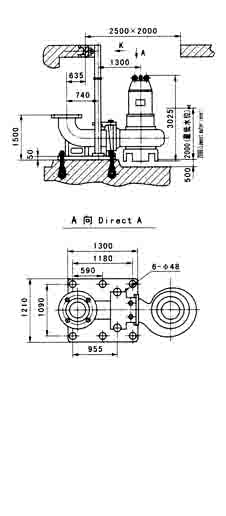

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
