型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
500WQ2500-10-110 |
φ500 |
2500 |
10 |
740 |
110 |
82 |
2100 |
|
500WQ2000-15-110 |
φ500 |
2000 |
15 |
740 |
110 |
83 |
2100 |
|
500WQ2800-1O-132 |
φ500 |
2800 |
10 |
740 |
132 |
82 |
2250 |
|
500WQ3600-1O-160 |
φ500 |
3600 |
10 |
740 |
160 |
83 |
2280 |
|
500WQ2600-15-160 |
φ500 |
2600 |
15 |
740 |
160 |
83 |
2280 |
|
500WQ2000-20-160 |
φ500 |
2000 |
20 |
740 |
160 |
82 |
2280 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

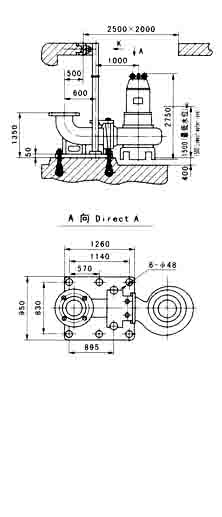

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
|
型號Model |
H |
A |
B |
C |
|
500WQ2500-10-110 |
2320 |
900 |
1900 |
1300 |
|
500WQ2000-15-110 |
2320 |
900 |
1900 |
1300 |
|
500WQ2800-10-132 |
2320 |
900 |
1900 |
1300 |
|
500WQ3600-1O-160 |
2880 |
1200 |
2060 |
1480 |
|
500WQ2000-20-160 |
2880 |
1200 |
2060 |
1480 |
