型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
200WQ400-13-30 |
φ200 |
400 |
13 |
1450 |
30 |
73 |
650 |
|
200WQ360-15-30 |
φ200 |
360 |
15 |
1450 |
30 |
75 |
650 |
|
200WQ250-22-30 |
φ200 |
250 |
22 |
1450 |
30 |
71 |
680 |
|
200WQ350-25-37 |
φ200 |
350 |
25 |
1450 |
37 |
75 |
800 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

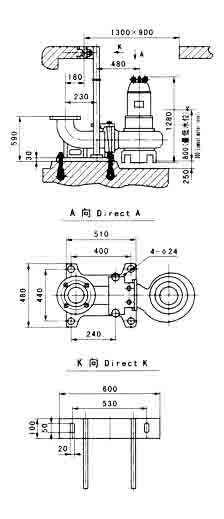

自動耦合式安裝
Auto—coupling
installation
|

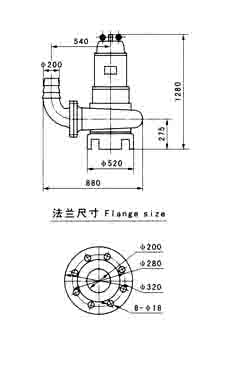

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ submersible sewage pump for the installation dimensions of model JYWQ auto-stirring sewage pump． |
|
型號Model |
H |
A |
B |
C |
|
200WQ400-13-30 |
1600 |
550 |
1200 |
780 |
|
200WQ360-15-30 |
1600 |
550 |
1200 |
780 |
|
200WQ250-22-30 |
1600 |
550 |
1200 |
780 |
|
200WQ350-25-37 |
1650 |
600 |
1250 |
800 |
