型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
80WQ60-13-4 |
φ80 |
60 |
13 |
2900 |
4.0 |
65 |
90 |
|
80WQ40-15-4 |
φ80 |
40 |
15 |
2900 |
4.O |
57 |
90 |
|
80WQ80-15-7.5 |
φ80 |
80 |
15 |
2900 |
7.5 |
71 |
135 |
|
80WQ65-25-7.5 |
φ80 |
65 |
25 |
2900 |
7.5 |
56 |
135 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

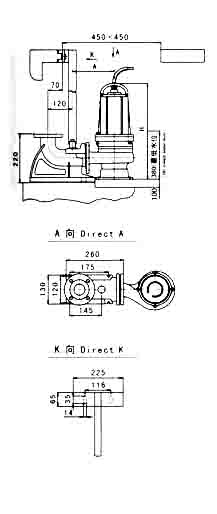

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|

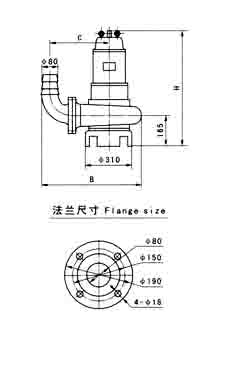

型號Model |
H |
A |
B |
C |
|
80WQ60-13-4 |
800 |
250 |
445 |
295 |
|
80WQ40-15-4 |
800 |
250 |
445 |
295 |
|
80WQ80-15-7.5 |
870 |
280 |
490 |
325 |
|
80WQ65-25-7.5 |
870 |
280 |
490 |
325 |
