型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
80WQ40-7-2.2 |
φ80 |
40 |
7 |
1450 |
2.2 |
52 |
75 |
|
80WQ30-8-2.2 |
φ80 |
30 |
8 |
1450 |
2.2 |
45 |
75 |
|
80WQ50-10-3 |
φ80 |
50 |
10 |
2900 |
3.0 |
58 |
85 |
|
80WQ43-13-3 |
φ80 |
43 |
13 |
2900 |
3.0 |
50 |
85 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|
自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|

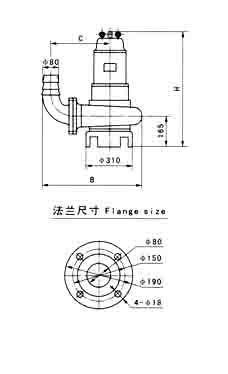

注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
80WQ40-7-2.2 |
460 |
290 |
650 |
460 |
|
80WQ30-8-2.2 |
460 |
290 |
650 |
460 |
|
80WQ50-1O-3 |
740 |
280 |
650 |
450 |
|
80WQ43-13-3 |
740 |
280 |
490 |
325 |
