型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
50WQ20-7-0.75 |
φ50 |
20 |
7 |
2900 |
O.75 |
54 |
50 |
|
50WQ1O-10-0.75 |
φ50 |
10 |
10 |
2900 |
O.75 |
56 |
50 |
|
50WQ25-10-1.5 |
φ50 |
25 |
10 |
2900 |
1.5 |
56 |
60 |
|
50WQ20-15-1.5 |
φ50 |
20 |
15 |
2900 |
1.5 |
55 |
55 |
|
50WQ27-15-2.2 |
φ50 |
27 |
15 |
2900 |
2.2 |
56 |
60 |
|
50WQ15-25-2.2 |
φ50 |
15 |
25 |
2900 |
2.2 |
56 |
60 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
| Note：the parameters of model
JYWQ autostirring submersible sewage pump are identical
to those ofmodel WQ submersible sewage pump(see the
table above)，see the next page for the out-form
dimensions．
|

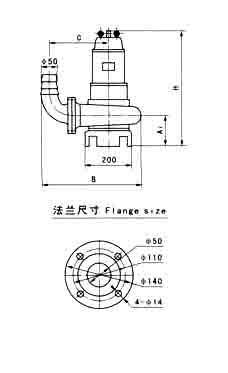

WQ型外形安裝尺寸圖OUT-FORM AND INSTALLATION DIMENSIONS OF MODEL WQ

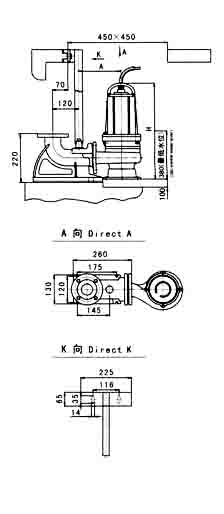

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose movabIe installatiOn
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
型號Model |
H |
A |
AI |
B |
C |
|
50WQ20-7-0.75 |
450 |
190 |
100 |
360 |
210 |
|
50WQ10-10-0.75 |
450 |
190 |
100 |
360 |
210 |
|
50WQ25-10-1.5 |
640 |
190 |
160 |
400 |
280 |
|
50WQ20-15-1.5 |
640 |
190 |
160 |
400 |
280 |
|
50WQ27-15-2.2 |
640 |
190 |
160 |
400 |
280 |
|
50WQ15-25-2.2 |
640 |
190 |
160 |
400 |
280 |
